DSH-VSAT

“DSH Marine Pte Ltd., Singapore” as a contracted WHOLE RESELLER of “SK SmartSAT” to DSH clients(Ship owners, Ship managers and Vessels) in SE Asian region(Singapore, Indonesia, Malaysia, Vietnam, Thailand, Philippines, Hong Kong and others) will launch its global VSAT satellite service from 2Q of year 2021.

Brief Information of Company

Company	DSH Marine Pte LTD.	UEN No.	200806599K
President	Heo Ug.
Incorporation Date	April 04. 2008
Desciption of Business	Ship Owner and its operation Chartering of ships, barges and offshores Wholesale trade of a variety of Goods General trading Telecommunications Resellers / Third party Telecommunications providers including Satellite & Value-added network operators
Registered Address	151 Chin Swee Road, #10-09 Manhattan House, Singapore 169876
Capital	SGD 800,000.00 (Eight Hundred Thousand Singapore Dollars)

“SK Telink co Ltd., Korea” is an affiliate of SK Telecomm(SK Group as the 4th Biggest in Korea) also a leading provider of VSAT satellite service named “SK SmartSAT” with the global satellite provider “INTELSAT” under the exclusive contract of bandwidth allocation in Korea and INMARISAT GX service(Ka-Band). Fyi, Korean owners fleet over 300ships in whole global oceans have been used with satisfaction of good quality/connectivity.

Typical Service

circleVSAT : Ku-Band, Unlimited Internet(Airtime).

circleService Period of Contract : Minimun one year(12months) basically or longer period.

circlePayment : Monthly cost by USD to be paid always one month in advance.

circleHigher Internet speed upto 4Mbps(Download) than above Standard to be discussed with client’s request with higher cost.

Type	MIR (Maximum Information Rate)		CIR (Committed Information Rate)		Remarks
High Speed	Download	Upload	Download	Upload	High Speed with competitive rate & higher min speed.
High Speed	2Mbps(2048Kbps)	512Kbps	0	0	High Speed with competitive rate & higher min speed.
Standard Speed	Download	Upload	Download	Upload	Typically using globally.
Standard Speed	1Mbps(1024Kbps)	512Kbps	128Kbps	64Kbps	Typically using globally.
Economic Speed 1	Download	Upload	Download	Upload	Slow Speed but higher min speed.
Economic Speed 1	512Kbps	256Kbps	64Kbps	32Kbps	Slow Speed but higher min speed.
Economic Speed 2	Download	Upload	Download	Upload	Slow Speed but lower min speed.
Economic Speed 2	256Kbps	128Kbps	32Kbps	32Kbps	Slow Speed but lower min speed.
Backup	INMARISAT FBB 25Mb

Organization of Service

refresh refresh

location_on location_on location_on location_on location_on location_on location_on

[ Click on the box below ]

^{DSH Marine}DSH SmartSAT

^{SK Telink}SK SmartSAT

Head

Management

Tech Support

Indonesia

Malaysia

Vietnam

Thailand

Philippines

HongKong

SE Asian Representative Office

Service Chart

Information of Bandwidth

Bandwidth

circleBandwidth is a representation of your connection speed. You typically see it as Kbps or Mbps. These stand for kilobits per second and megabits per second respectively. Similar to miles per hour these measure the amount of data that is able to ﬂow through your connect in one second. A megabit is roughly 1,000 times the size of a kilobit. (1,024 to be exact).

circleTypical bandwidth measurements you will see are 128 Kbps, 256 Kbps, 512 Kbps, 1 Mbps, 2 Mbps, 4 Mbps, 8 Mbps, etc... Notice that when we pass from 512 Kbps to 1 Mbps we change how we notate the speed. 1024 Kbps would also be 1 Mbps.

1) Maximum information rate (MIR) refers to the maximum bandwidth that the VSAT subscriber will receive.

2) Committed Information Rate (CIR) is the speed that a user will experience if all subscribers who share the bandwidth simultaneously use the data connection. This promises a minimum speed, but it will be higher if the maximum number of subscribers does not use the bandwidth.

Kinds of Satellite Bandwidth

circleL-Band : 1 ~ 2GHz

1) Mobile Satellite Services (MSS). INMARISAT Fleet Broadband or Iridium Certus.

2) Based on a wide beam, so less pointing accuracy is needed to receive a strong signal. This means on board equipment can be smaller and lower cost.

circleC-Band : 4 ~ 8CHz

1) Very Small Aperture Terminal (VSAT). HTS(High Throughput Satellite).

2) Requires more power so larger (2.4m+), more expensive antennas are needed but bandwidth is relatively cost-effective.

circleKu-Band : 12 ~ 18CHz

1) Very Small Aperture Terminal (VSAT). HTS(High Throughput Satellite).

2) The most common maritime VSAT band in use, Ku-band satellite coverage has grown along the commercial trading routes making it a global VSAT alternative to C-band for merchant vessels.

circleKa-Band : 26.5 ~ 40CHz

1) Very Small Aperture Terminal (VSAT). INMARISAT GX.

2) A very large frequency range so there is more available spectrum, making it the least costly of all four bands in terms of satellite ‘airtime’.

Coverage Map

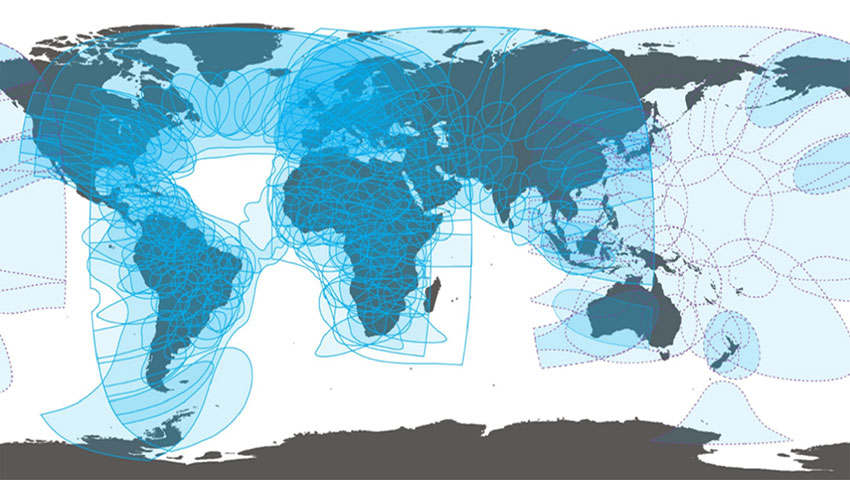

VSAT(Ku-Band) Coverage Map

HTS(Ku-Band) Coverage Map

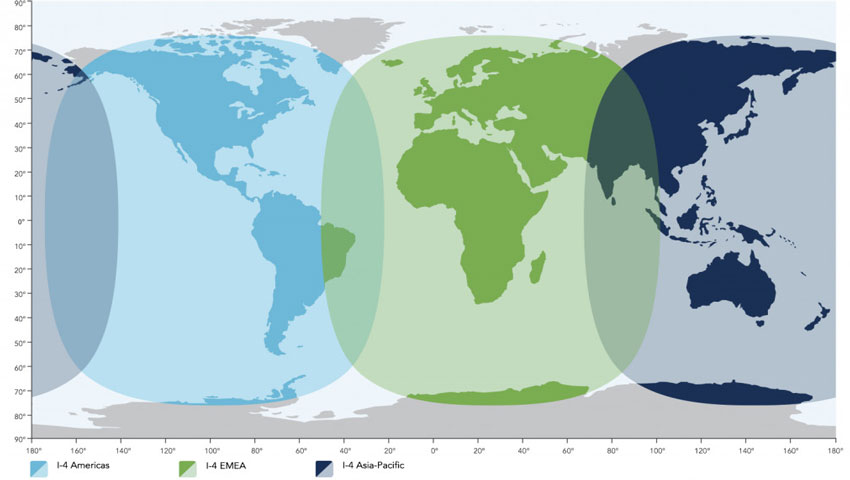

Inmarsat FB(Fleet Broadband, 4th Generation, L-Band)

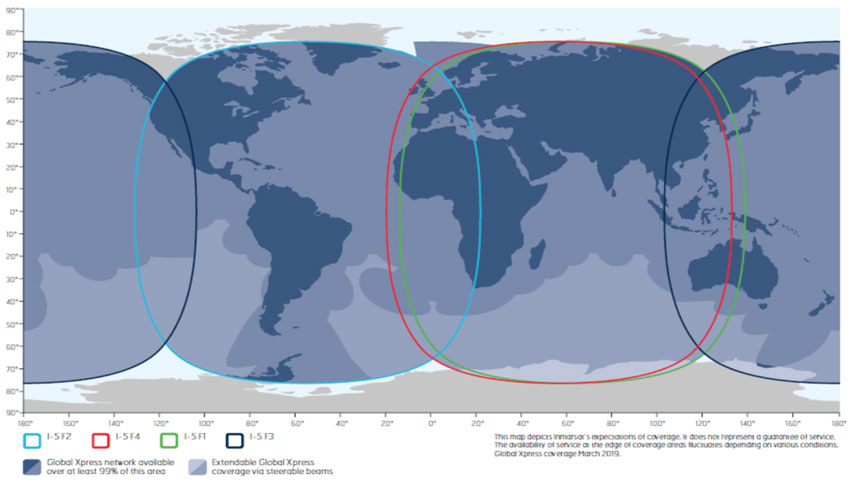

GX(Ka-Band) Coverage Map

chevron_left chevron_right

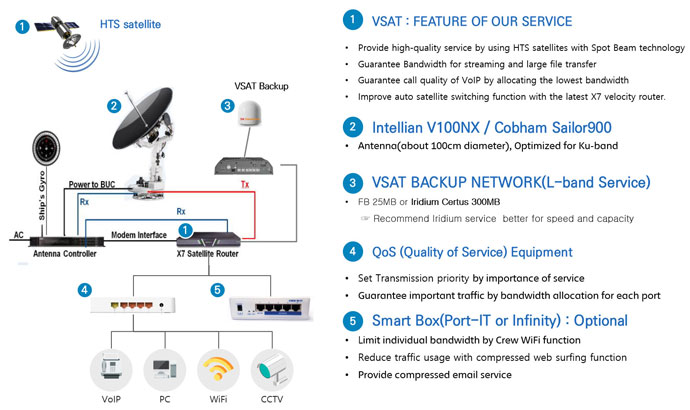

Composition & Service Feature

VSAT Equipment Feature

Intellian V100NX : All New 1m Ku-Ka Dual Band, GEO/MEO/LEO, VSAT Terminal

circleKu-Ka Dual Band Ready

arrow_rightThe v100NX is the Ku-Band to Ka-band convertible antenna that can be simply converted from Ku- to Ka-band. The reflector and radome are frequency tuned for both satellite bands, ensuring maximum performance in both bands.

circle2.5GHz Wide-band Ka Ready

arrow_rightThe v100NX uses 2.5GHz wide-band Ka tuned Radome & Reflector. It provides the convenience of not having to replace the Radome and Reflector when using 2.5GHz service in the future.

circleStandardized Modular Components Across NX Series

arrow_rightModular components are used throughout the NX range, such as dynamic motor brakes with integrated encoders, Main Control Unit and skew assembly. Sharing common modules across Intellian's NX antenna series, the number of spare parts is reduced.

circleGEO/MEO/LEO Tracking Capability

arrow_rightThe v100NX is ready for the future. Designed with the world's most accurate satellite tracking performance with our proven tracking algorithm covering GEO, MEO, and LEO constellations.

circleSingle Coaxial Cable

arrow_rightThe v100NX integrates RF and power cables into one coaxial cable. A single cable carries Tx, Rx, DC power, data, and reference signals between the antenna and the BDT.

circleNew AptusNX

arrow_rightIntellian's all new integrated M&C platform, AptusNX provides responsive web user interface to manage and control the antenna system regardless of device types. Installation Wizard in AptusNX automates functions for system configuration so that operators are minimally involved in system installation and operation, including automatic cable loss compensation, line-up tests, and auto diagnostics.

Cobham sailor 900 : Ku-Band

circleFocus on higher return links

arrow_rightWhile one-metre Ku-band antennas with 8W amplifier(BUC) configurations are now a de-facto standard for global Ku-band networks, the ever increasing demand for more bandwidth and higher data through-put also for the uplink to the satellite has triggered demand for antenna systems with higher RF power.

circleA competitive package

arrow_rightService Level Agreements(SLA) are a cru-cial aspect of maritime IT and commu-nication solutions. labelIn order to meet the demand for high SLAs, especially when there are obstructions on the ship that cannot be overcome by setting up blocking zones, satcom service providers some-times install two antennas. labelThe SAILOR Ku-Band VSAT platform makes this easier and less costly as it can operate two antenna systems on a single modem without the need for an extra box to man-age the connection to the VSAT modem. labelThe two SAILOR 900 antennas controllers manage the connection between satellite and satellite router fully automatically and the switch-over happens in just 20 milli-seconds.

circleFlexible and future-proof

arrow_rightNew Ku-band and Ka-band high through-put satellites(HTS) are coming online. All SAILOR Ku-Band VSAT have been tested to work on HTS services, such as Intelsat’s EpicNG. Most of the SAILOR 900 VSAT vari-ants are prepared for conversion from Ku- to Ka-band operation should the customer demand it. For those who do not intend to convert to Ka-band at a later stage, we offer our latest addition to the SAILOR 900 series namely the SAILOR 900 Ku Optimised antennas, also in the 8W and 20W variants. With this solution, you will enjoy all the benefits of the well-known SAILOR technology plat-form at a competitive price that reflects your business needs. sailor01

Furuno FV-110 : Ku-Band

circleEasy to install with just one cable between Above Deck Equipment(ADE) and Below Deck Unit(BDU).

circleOperate two antenna systems on a single modem for increased redundancy.

circleGlobal support and services.

circleAntenna reflector size: 1.03 m.

circleAntenna weight: 126.5 kg.

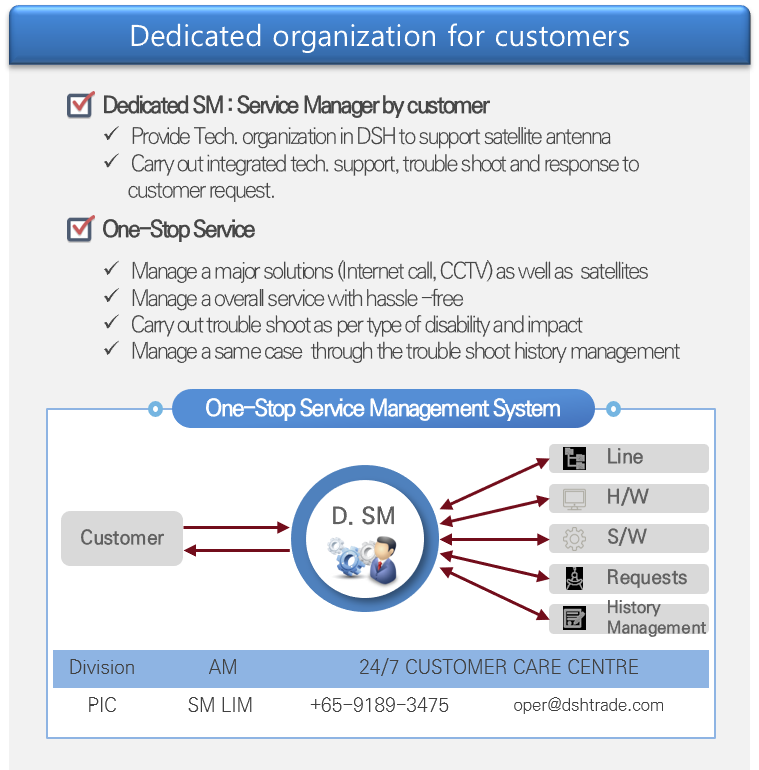

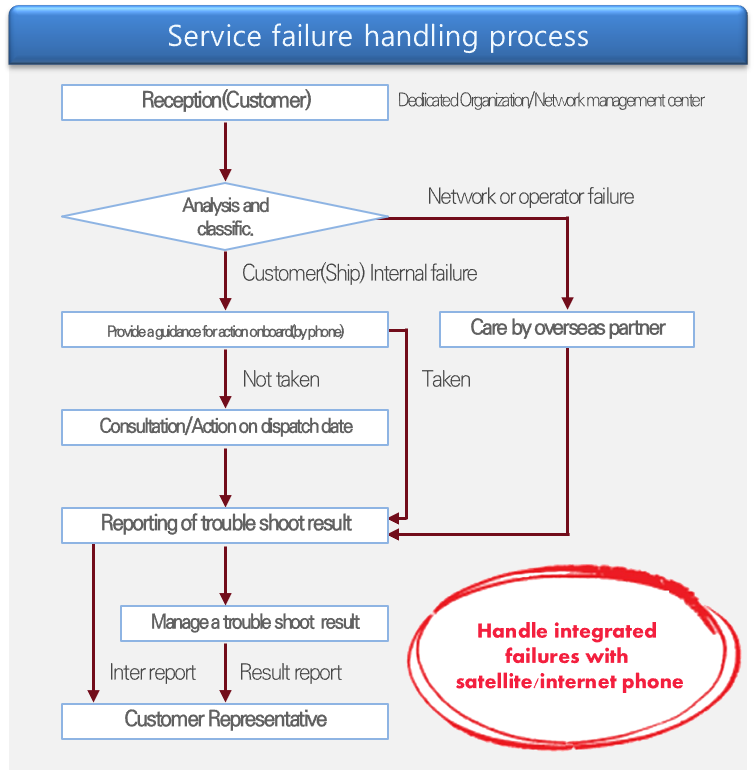

Maintenance & Management of Network Operation

Provide a dedicated organization to carry out One-Stop maintenance service such as integrated management of major solutions, technical support, trouble shooting and satellite service as well.

Additional Service

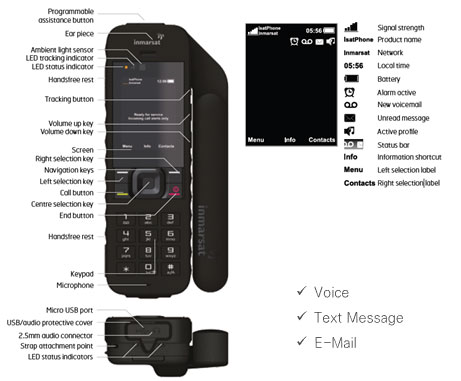

Satellite(Inmarsat) Mobile Phone

circleFeatures

arrow_rightCoverage in worldwide with Inmarsat satellite.

arrow_rightUsable any time in kinds of disasters(Natural disaster, pirates & war etc).

arrow_rightEasy to use and durable mobile phone.

arrow_rightProvide information of user location through GPS.

Size	169 x 75 x 29 mm
Weight	316g
Battery Life	8 hrs(continuous) / 160 hr(Stanby)
Location	Built in Tracking Button, (by SMS)
Antenna Design	Folding type
Coverage	Worldwide
Bluetooth	Applicable

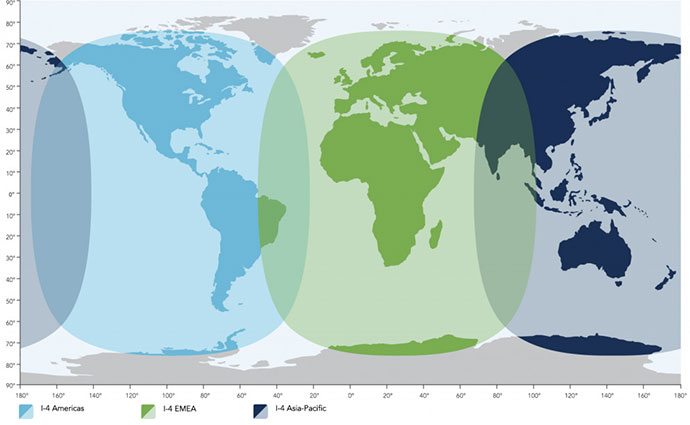

[ Inmarsat mobile phone Coverage ]

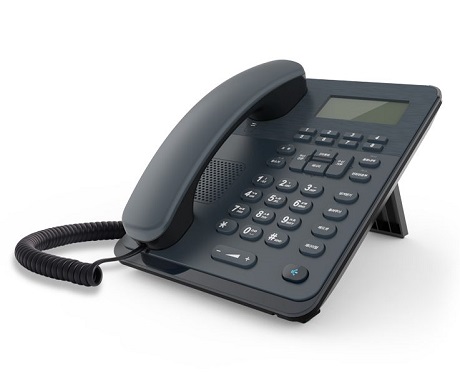

VOIP Phone(IP460S, WIFI Phone)

arrow_rightStylish business VOIP Phone.

arrow_rightVarious functions suitable for the office.

arrow_rightHigh quality of voice phone.

arrow_rightSave 8 speed dial keys / 100 phone numbers.

circleSpecification.

Call Function: - Call Forwarding.; - Call Hold.; - Call screen/Do Not Disturb.; - Call Pickup.; - Call Transfer.; - Call Waiting.; - 3 Party Conference call.
Keys and Buttons: - 12 Numeric Keys with Alphabet.; - 8 Speed Dial Keys.; - 2 Volume Keys.; - 14 Function Keys: Hold, Mute, Calllog, Phonebook, Pickup, Transfer, Headset, Redial, Speaker Phone, Call Forwarding, ONO, 3 Way call, Message, hook.

IP Network: - 1Pv4(RFC 791), 1Pv6(RFC1883) dual stack (optional), TCP, UDP, HTTP, ARP, ICMP.; - RTP/RTCP, Secure RTP.; - DNS: A record(RFC 1706), SRV record(RFC 2783).; - NAT/PAT.; - VLAN: IEEE 802.1q.; - QoS: IEEE 802.1p, DiffServ(RFC 2475).; - Network Address Assignment: Static IP/DHCP, PPPoE.
Ethernet: - Dual switched 10/100 Based-T Through RJ-45 Interfaces.; - 10/100 BASE-T: 2 Ports Providing auto-MDI/MDIX, Enabling the Use of Straight or Crossover Cable in Either Port.; - 1 RJ-45 Port to Connect LAN or Wan, 1 RJ-45 port to Connect PC.

Display: - Positive FSTN Graphic 131 x 64 dots(with Back Light).; - Ring Indication LED.
Hardware Specification: - Power Adaptor: Output DC 5V/2A InputAC 110-220V, 50-60Hz, 0.5A.; - Power Consumption: 5Watts(max).; - Measurements: 170 x 224.6 x 121.6 mm (WxlxH).; - Weight: 700g.; - Color: Black & gray two tone.; - Phone Stand.; - Headset with 3.50/4 Pole Support.

Smart Box(Port-IT)

circleTo use this Smart Box optionally, ship owners can provide free or paid WiFi to crew with reasonable cost under the secured necessary bandwidth for business by controlling traffic freely.

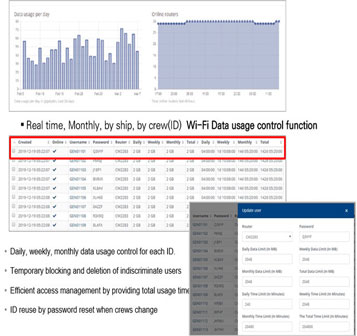

[ Wi-Fi Data Usage management ]

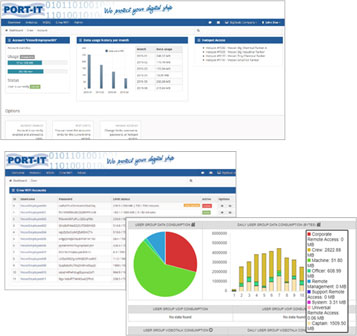

[ PORT-IT for CREW WIFI(Office Management) ]

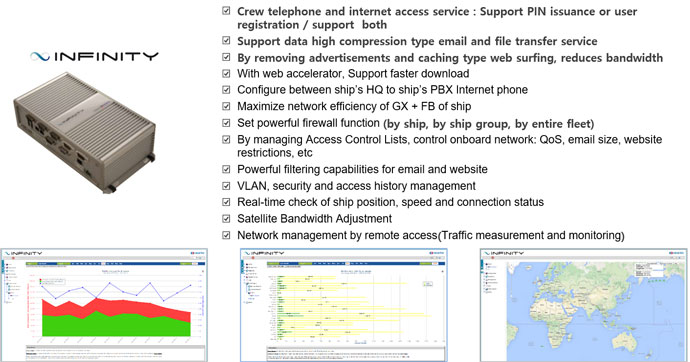

Smart Box(Infinity)

circleTo use this Smart Box optionally, ship owners can provide free or paid WiFi to crew with reasonable cost under the secured necessary bandwidth for business by controlling traffic freely.
