DSH-VSAT

Petroleum and Petrochemical Products

1) Petroleum Products.

arrow_rightClean Petroleum Products : Gas Oil, Diesel Oil(EN590), HSD(High Speed Diesel), Jet A1.

arrow_rightDirty Petroleum Products : Fuel Oil(380cst) or VLSFO(Very Low Sulfur Fuel Oil, max 50ppm).

arrow_rightCoal Tar, Carbon Black Oil, Creosote.

arrow_rightAsphalt(Bitumen).

2) Petrochemical Products.

arrow_rightLiquid Bulk : MTBE, Methanol, Caustic Soda Solution(45%-48%), Edible or Industrial Ethanol, Molten Sulphur.

arrow_rightDry Bulk(Bags) : Caustic Soda(Flake, 99%) with 50Kg/pp bags packed.

Caustic Soda(Solid, 99%) with steel drum(200L) packed.

Pet Resin with 50Kg/pp bags packed.

Pet Coke with dry bulk.

3) Biodiesel, Vegetable Oils and Palm Oil Products in liquid bulk by flexibag containers Or by chemical tankers.

Natural Resources or Industrial Machinery Equipments

1) Indonesian Steam Coal, Anthracite Coal, Iron Ore or Iron Sand.

2) 2^nd hand Marine Crane and Heavy Machines.

3) Offshore Equipments & Shipyard Machinery.

CNG containers/Cryogenic LNG tanks

Inland transportation of small quantity(volume) usually few hundreds cbm(m3) of LNG(Liquified Natural Gas) product from LNG storage tanks terminal to regional small regional LNG supply stations or In case of sea coastal transportation of small quantity(volume) few hundreds cbm(m3) to below 5,000cbm(m3) from LNG storage tanks terminal/Port to some LNG power plants or regional small LPG storage tanks in islands, recently our CNG containers and/or Cryogenic LNG tanks as one of reputable brand “LUXI” usually have been used very conveniently globally. We as an Seller/Exporter of Chinese leading manufacturer “LUXI”, we have exported 20ft/40ft CNG containers And 40ft(about 30cbm capacity) of Cryogenic LNG tanks upto abt 45ft(60cbm capacity) containerized to SE Asian Clients(mainly LNG power plants or small LNG storage in islands).

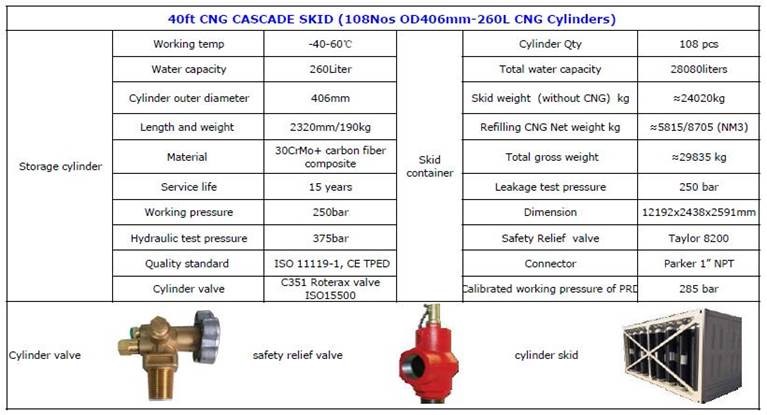

1) 40ft tubes CNG tank containers(Also smaller 20ft available).

2) 40ft carbon fibre CNG tank containers(Also smaller 20ft available).

3) Cryogenic LNG Tank.

Cryogenic LNG tanks also have a smaller capacity of 20ft ( T75 )/ 40ft(30cbm capacity) LNG container available. But usually used to be large capacity LNG storage facilities(i.e. storage tanks of LNG power plants) as the vertical or horizontal type, 30cbm ,60cbm, 100cbm, 150cbm upto 300cbm etc, with high vacuum insulation. Its storage duration of cryogenic LNG tanks under the ambient temperature will be usable for a month(30days).

30m³/0.8 Mpa

Cryogenic LNG gas tank

	Inner tank	Outer tank
Material	LO2/LN2/Lar	Perlite
Working Temperature(℃)	-196	-19~50
Working Pressure(Mpa)	0.8	-0.1
Design Temperature(℃)	-196	50
Design Pressure(Mpa)	0.84	-0.1
Pneumatic test Pressure(Mpa)	1.08	0.11
Leakage test Pressure(Mpa)	0.84
Main pressure units	06Cr19Ni10	Q345R
total valume(m³)	31.6
Effective volume(m³)	30
Filling coefficiency	0.95
Dimension (DiameterHeight)(mmmm)	2520*12060 Vertical

60m³/1.2 Mpa

Cryogenic LNG gas tank

	Inner tank	Outer tank
Material	LNG	Perlite
Working Temperature(℃)	-162	-19~50
Working Pressure(Mpa)	1.2	-0.1
Design Temperature(℃)	-196	50
Design Pressure(Mpa)	1.26	-0.1
Pneumatic test Pressure(Mpa)	1.5
Leakage test Pressure(Mpa)	1.26
Main pressure units	06Cr19Ni10	Q345R
total valume(m³)	60
Effective volume(m³)	54
Filling coefficiency	0.9
Dimension (DiameterHeight)(mmmm)	302415181 Vertical/ 302414184 Horizontal

4) LPG ISO Tank(T50) Container.

Click on the image.

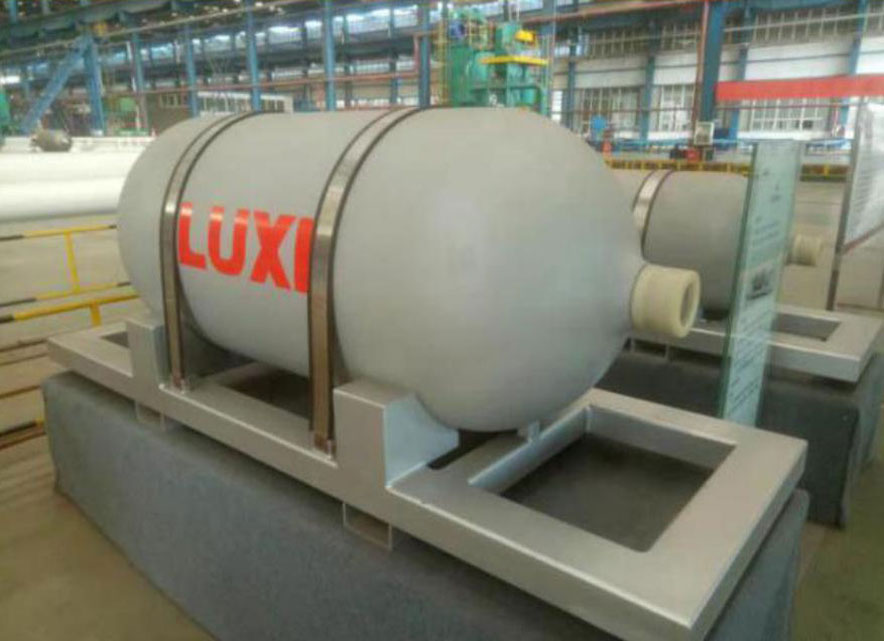

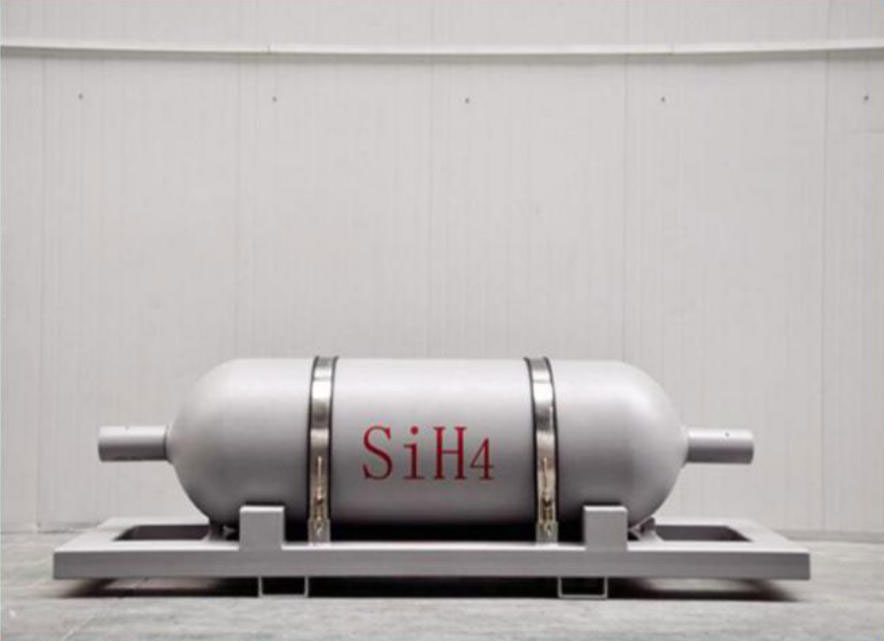

5) Type Y Cylinder for multi-purposes of high Purity/Liquified Gas.

circleExecutive Standards:ISO11120、TPED、DOT-3AA\3AAX Code and Q/1500LXZ001-2017 <Capacity steel seamless cylinder>.

circleApplications: Used for high-purity and high-pressure liquefied gas storage and transportation, to provide safe and reliable quality assurance for the storage and transportation of high corrosive gas.

circleNominal working pressure: 166Bar, cylinder diameter is divided into φ610mm, φ850mm series.

circleφ610 series product specifications: 440L, 470L, 520L

circleφ850 series product specifications: 880L

Diameter (mm)	Capacity (L)	Wall Thickness (mm)	Working pressure (Bar)	Filling Medium	Certifications
610	440	15	166	N2, He, SiH4, SF6, HN3, N2O, CL2, HCL	TPED, ISO11120, GB
	470
	520
850	880	23		CL2, HCL, CO2, N2O, NF3, SF6, CF4, NH3, CH3F, CH2F2, CHF3, C2F6	TPED, DOT, GB
